MING 57.04 Phoenix – Polymesh – [ CYBER

[ VAULT STATUS ]: SECURED
[ BRAND ]: Ming
[ PROVENANCE ]: Switzerland
[ ASSET_ID ]: #MI-5704-PHX
[ V.A.U.L.T. ASSET_DIAGNOSTIC ]
This proprietary scoring system audits assets based on market velocity, horological authority, material uniqueness, supply scarcity, and value trajectory.
VELOCITY
AUTHORITY
UNIQUENESS
LIMITED
TRAJECTORY
[ MARKET_FLOOR ]
$11,400
Source: Core Collection Release (2026)
[ EQUIVALENT_SOVEREIGN_FLOOR ]
CHF 22,000
CZAPEK ANTARCTIQUE MONOPUSHER
[ SOVEREIGN_INTELLIGENCE_LOG ]
“The Phoenix positions MING’s most considered case architecture directly against the independent Swiss monopusher benchmark. Where Czapek commands CHF 22,000 for the Antarctique’s in-house complication, the 57.04 delivers nine-piece stepped lug construction, a multiphasic radial dial, and eight years of accumulated brand authority — at a fraction of the sovereign entry cost.”
[ ARCHIVE_TIMELINE ]
The archive is executing a structured hold on this asset. The 57.04 Phoenix enters the vault as a record of fifth-generation MING architecture — held against the brand’s continued trajectory and the authority that eight years of production discipline have established.
VAULT_INGRESS: JUNE 2026
EGRESS_WINDOW: DECEMBER 2027
> YEAR: 2026
> CHASSIS: 40
> DIAL: Grey
> GENRE: Generative Design
> ALPHA_SCARCITY: One of 150 in 2026
[ ENQUIRE ABOUT THIS ASSET ]

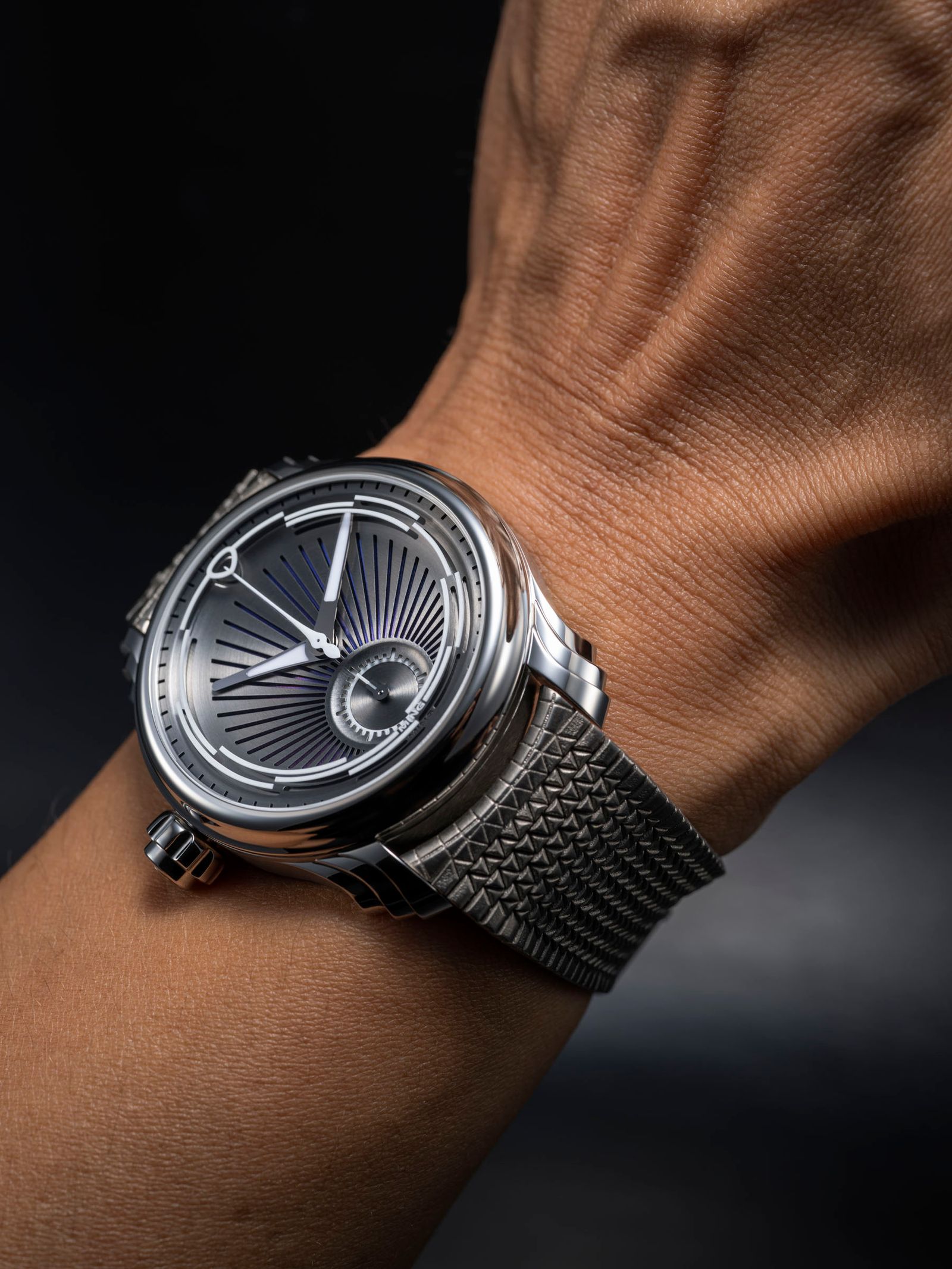

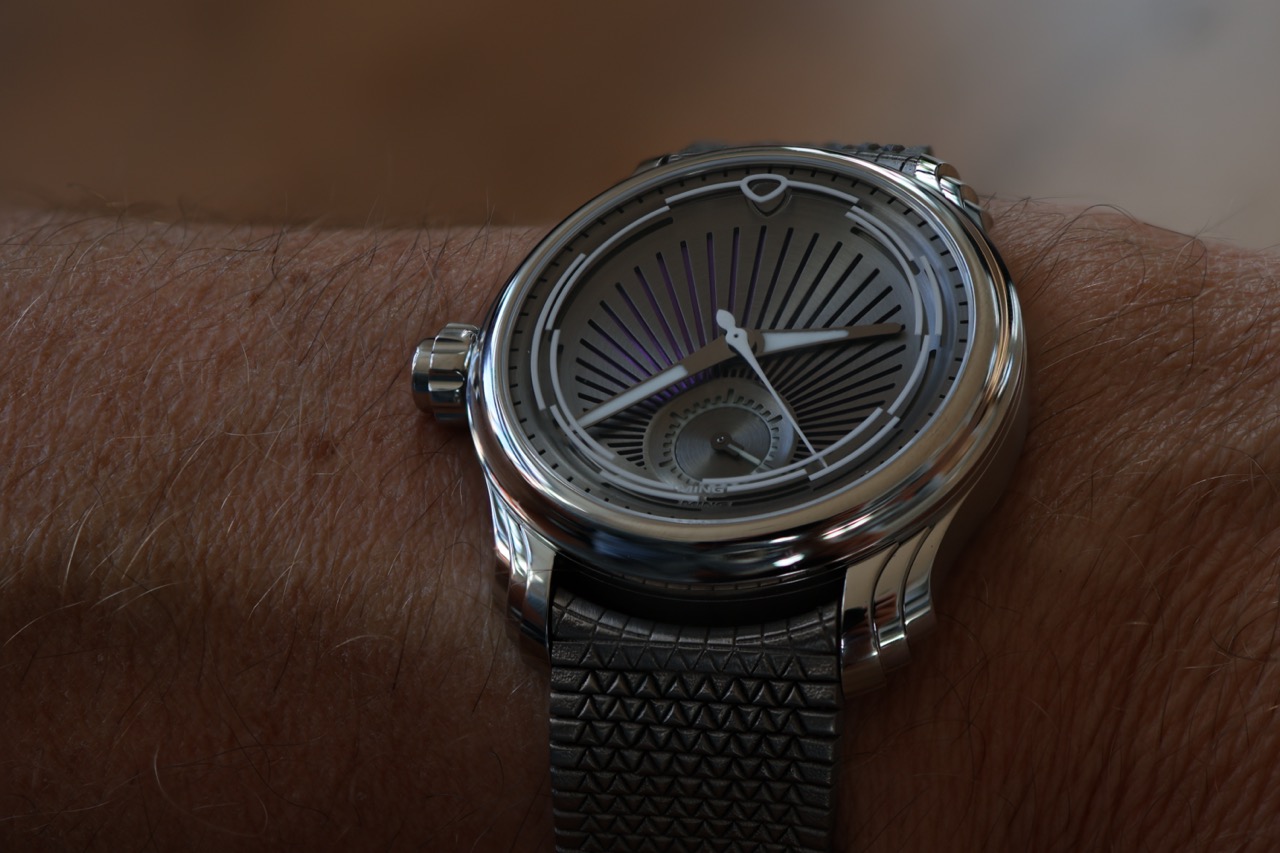

The archive stabilized the 57.04 Phoenix as its primary record of fifth-generation MING architecture. A destro monopusher chronograph built on an Art Deco case requiring nine separate pieces for the lugs alone, the Phoenix represents the accumulated design vocabulary of eight years of independent watchmaking distilled into a single cohesive object. The multiphasic baseplate — visible through radial dial cutouts — establishes a tonal depth that shifts with the light in a way that static dials cannot replicate.

[ THE_SHELL: CASE_LOGIC ]

▪MATERIAL:

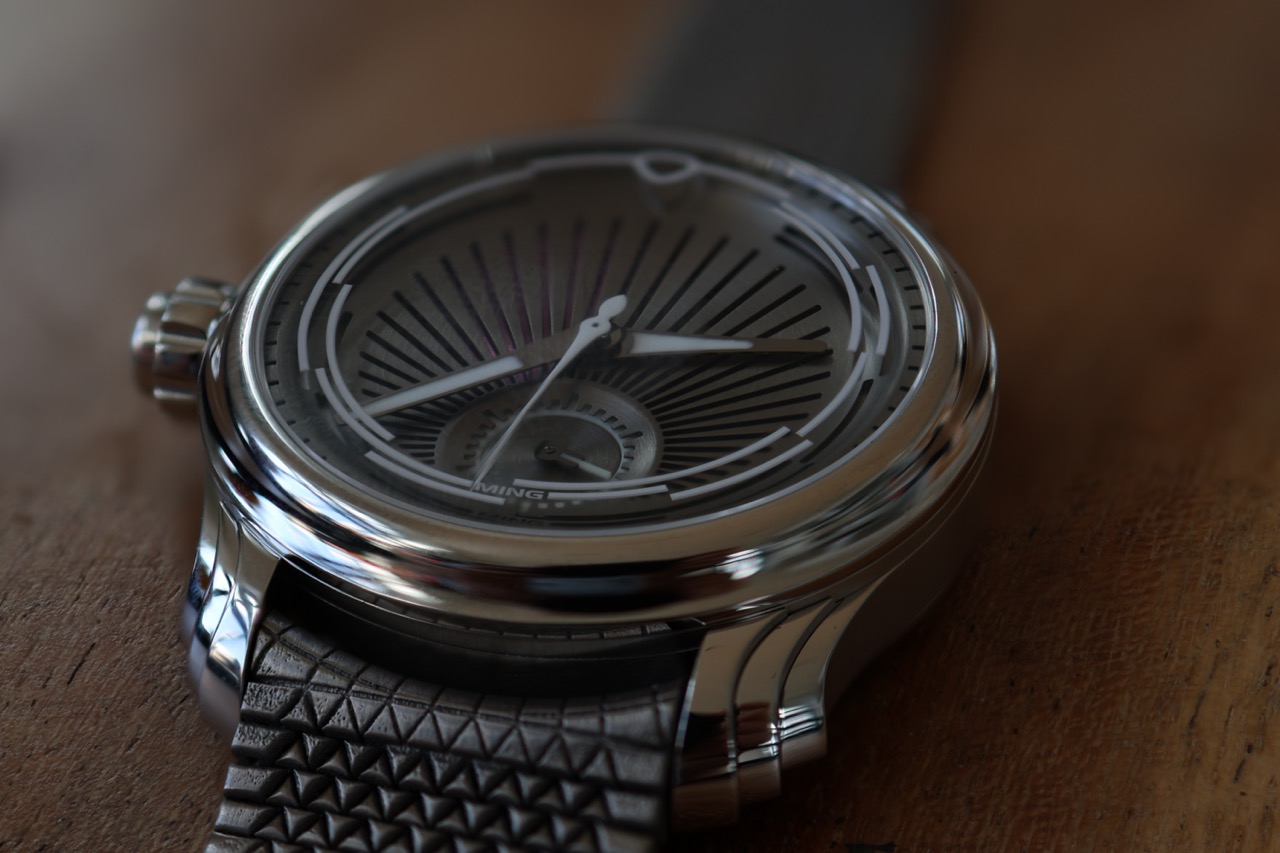

316L Stainless Steel; multi-piece construction with triple-step lugs delivering alternating brushed and polished surfaces on adjacent planes — a finish geometry that demands separate tooled components rather than single-piece milling.

▪ENGINEERING:
Nine-Piece Lug Construction; the stepped lug geometry requires nine discrete case components. A structural commitment to definition over simplicity — no shortcut produces this result.

▪STANCE:
40mm × 11.85mm // 47.8mm lug-to-lug. Destro configuration — crown and monopusher at 9 o’clock. 20mm lug width.

▪RESILIENCE:
100m Water Resistance // Sapphire crystal front and rear with double-sided anti-reflective coating. Top crystal laser-cut with MING Polar White lume indices.

[ THE_FACE: VISUAL_INTERFACE ]

▪ARCHITECTURE:

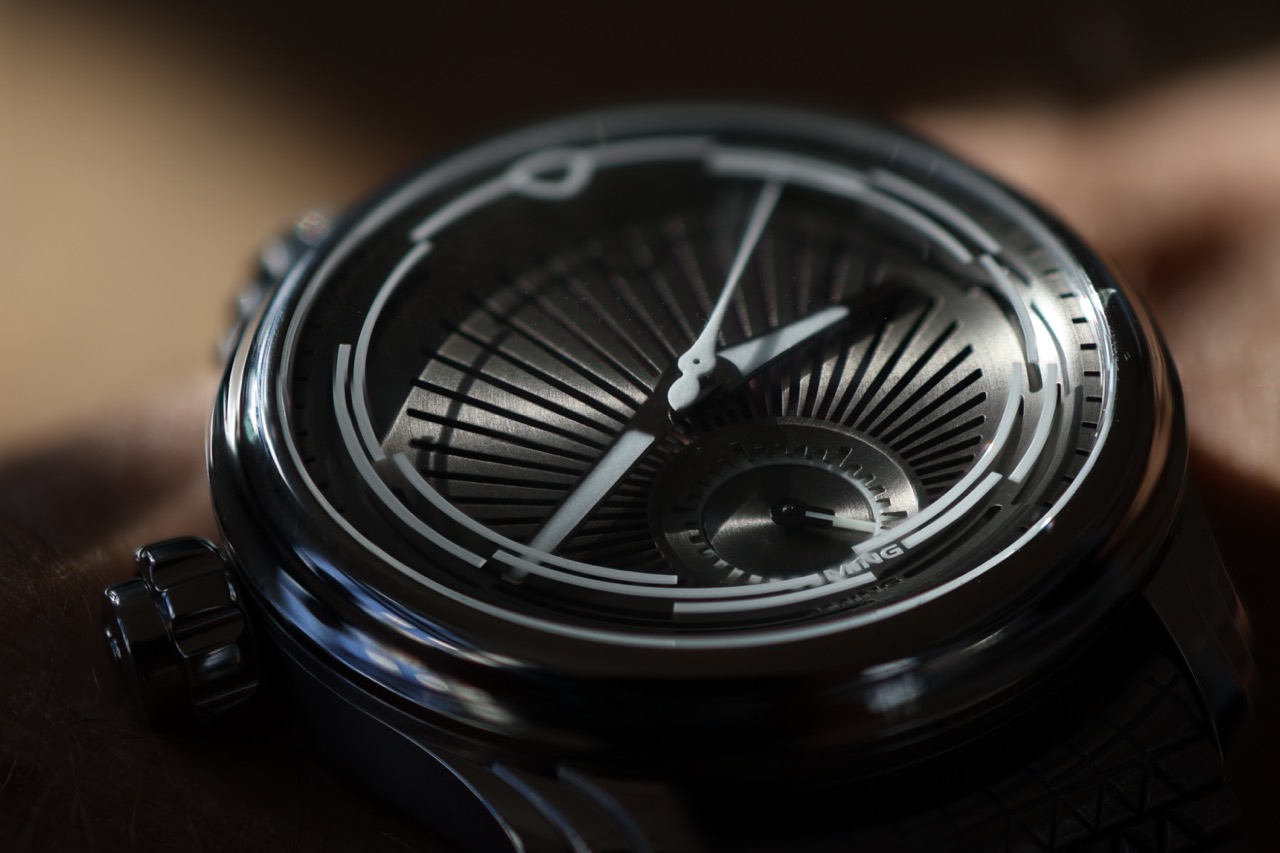

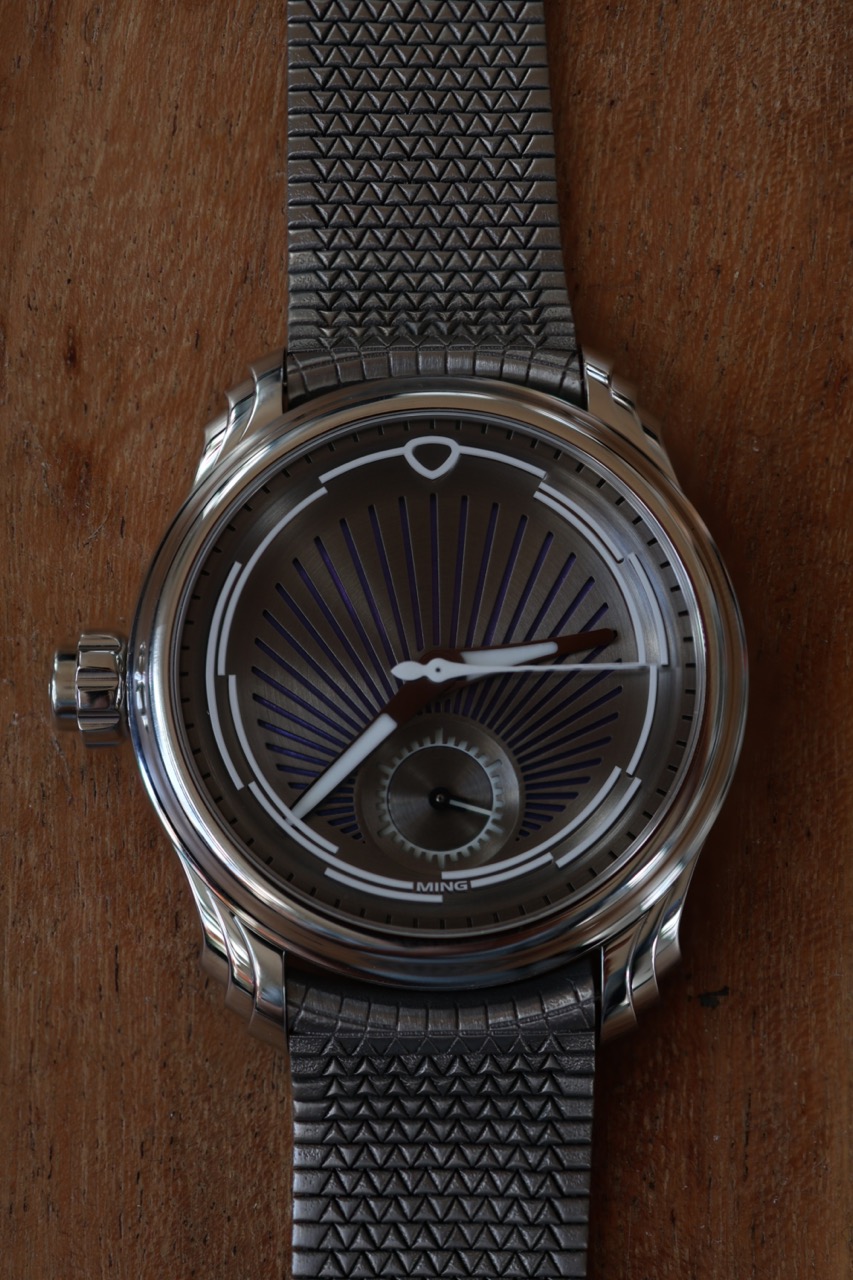

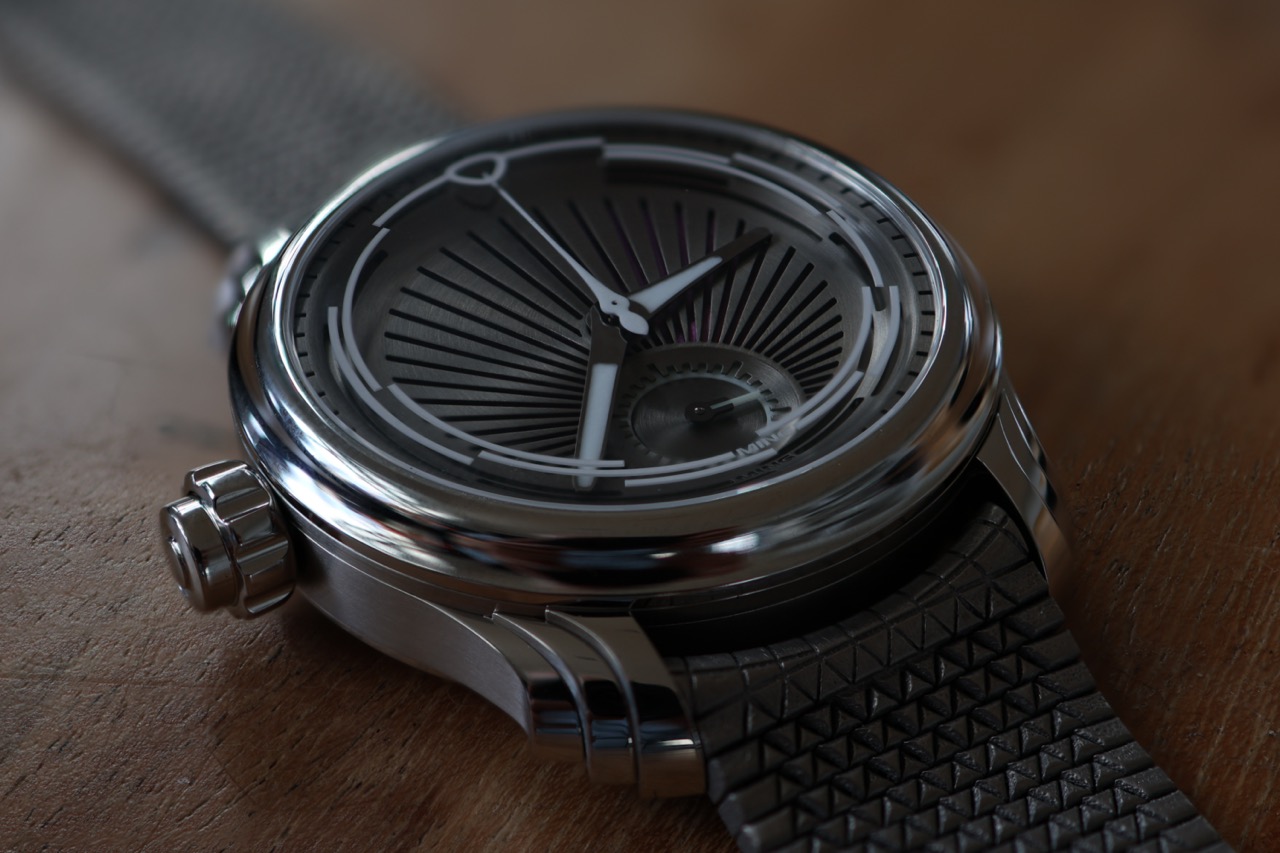

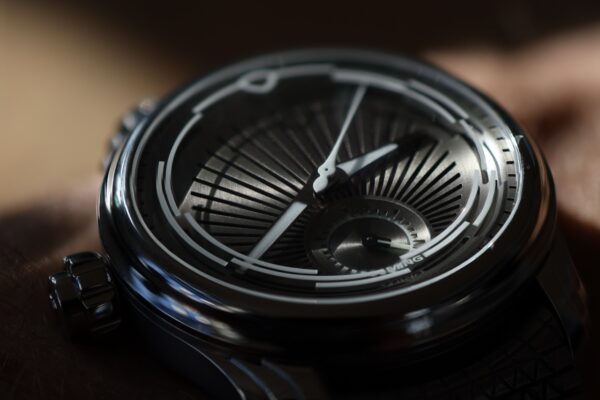

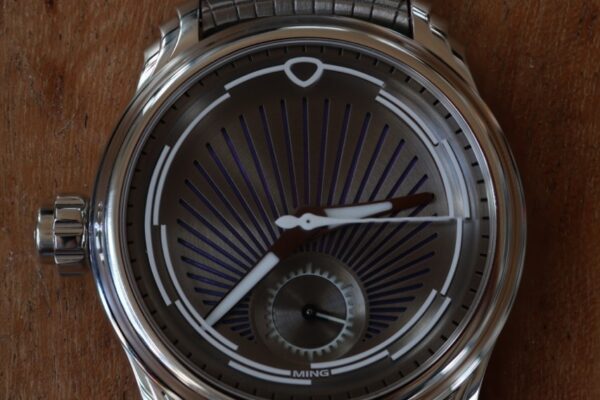

Radial Cutout Dial; metallic deep-dish upper dial with sculpted negative relief openings revealing the multiphasic colour-shift baseplate beneath. Curved sculpting and shadow geometry produce a three-dimensional field that reads differently under every light source.

▪UI_LOGIC:
Multiphasic Baseplate Coating; thin-film interference coating beneath the main dial selectively reflects different wavelengths at different angles. Colour visible only through the cutouts — appearing and disappearing with wrist movement rather than sitting static on the surface.

▪LUME:
Dual Compound System; diamond-cut hands with Super-LumiNova X1 and laser-cut crystal indices filled with MING Polar White — a proprietary compound originally developed for the 37.02 Minimalist. Chronograph minute counter disc coated in SLN X1.

[ THE_ENGINE: INTERNAL_MECHANICS ]

▪CALIBRE:

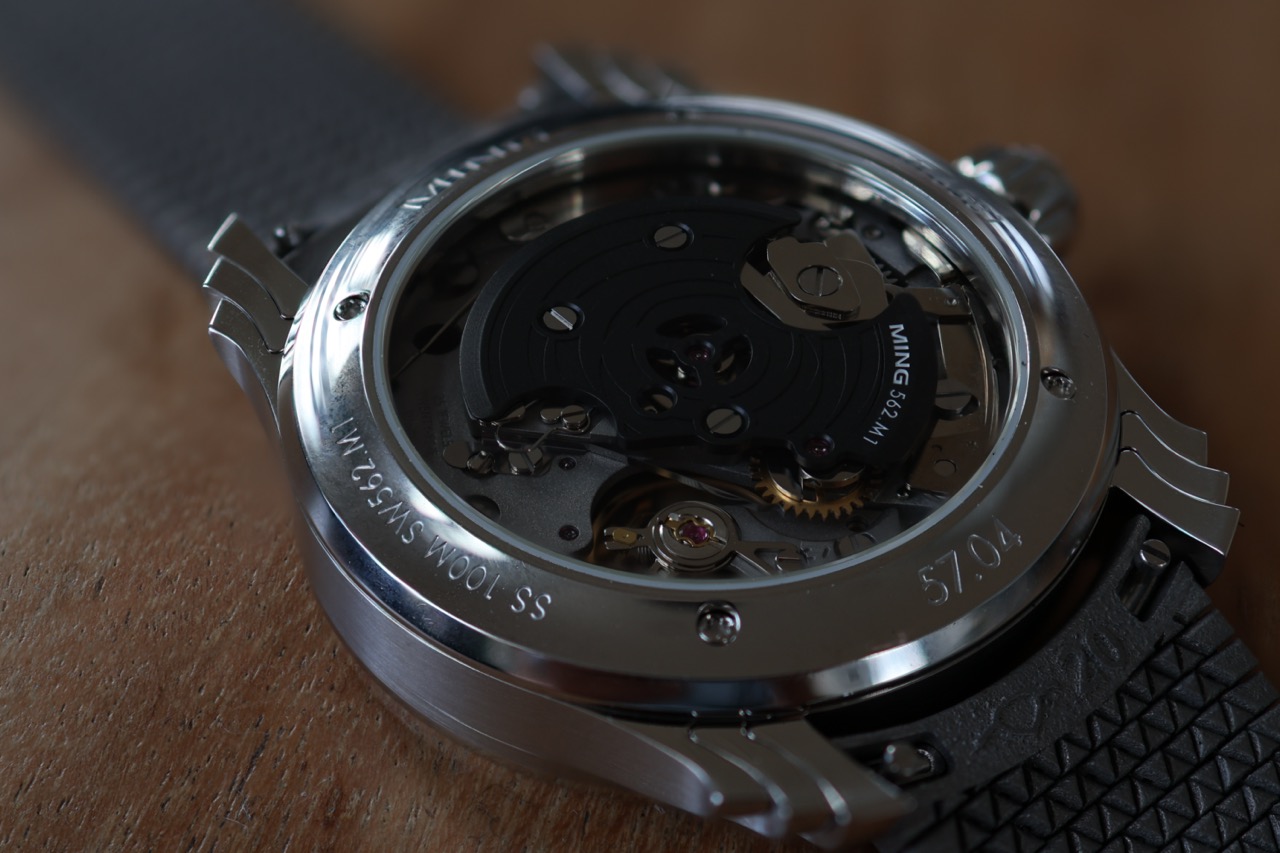

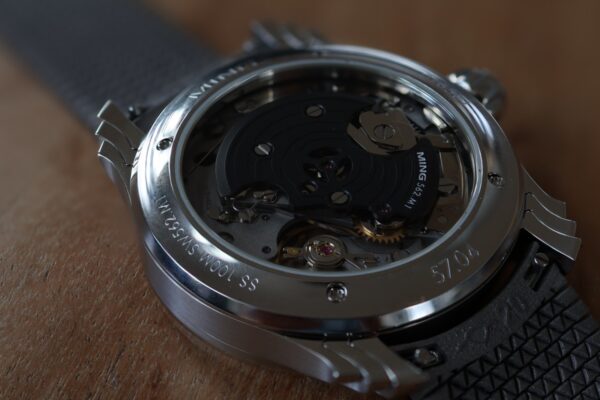

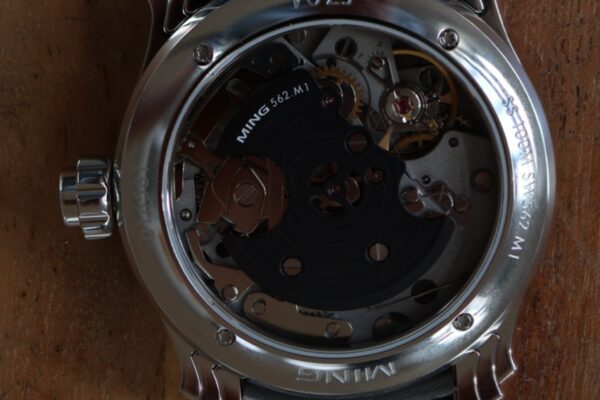

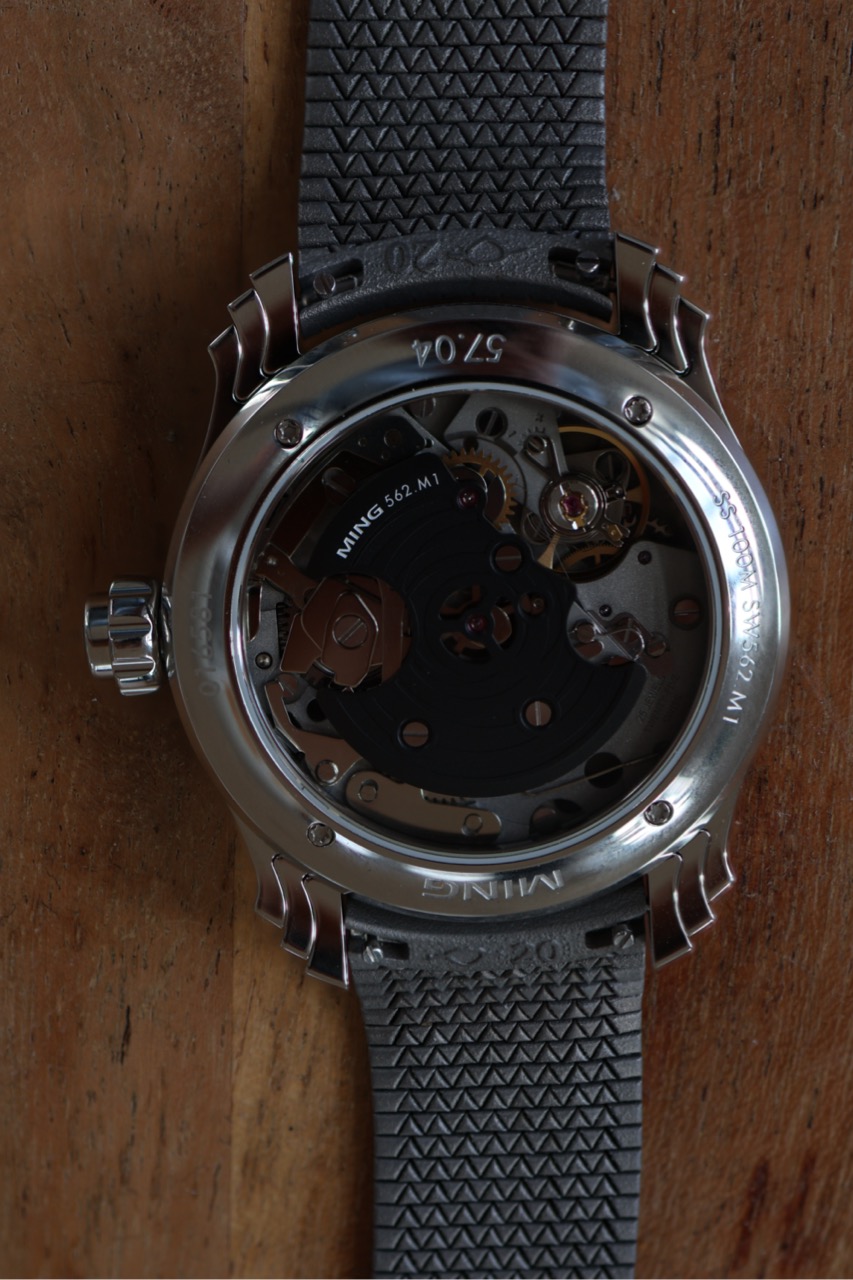

Sellita for MING SW562.M1; uniquely configured manual-wind monopusher chronograph calibre. Rhodium-coated mainplate with contrasting anthracite three-quarter bridge — a finishing specification that carries the tonal logic of the dial into the movement.

▪RESERVE:
~60-Hour Power Reserve at full wind // 21,600 BPH // Adjusted in 5 positions. Single pusher at 9 o’clock governs start, stop, and reset.

▪BRACELET:
MING Polymesh; 20mm 3D-printed titanium bracelet comprising 1,693 individual components — a generative lattice structure that extends the architectural language of the dial to the wrist.

[ CUSTODIAN_FIELD_LOG ]

▪INGRESS_NOTE:
Secured via direct allocation. The 57.04 Phoenix enters the vault as the archive’s primary record of fifth-generation MING architecture — the most considered Art Deco case construction the brand has produced, held against a brand trajectory that eight years of production discipline have earned the right to claim.

>> ARCHIVE_OBSERVATIONS:

▪CASE_DISCIPLINE:
Nine separate case components for the lugs alone. This is not a styling decision — it is a manufacturing commitment. Achieving clean definition across alternating brushed and polished surfaces on adjacent stepped planes requires separate tooled parts. The result is a case that reads as a single coherent object while containing a level of construction complexity that most independent chronographs at this price point do not attempt.

▪DIAL_PHYSICS:
The multiphasic colour-shift baseplate operates through thin-film interference — the same physical principle behind iridescent materials in fine jewellery and optical instrumentation. The colour is not applied; it is structural. Glimpsed through the radial cutouts rather than displayed on the surface, it functions as a secondary visual layer that changes with the angle of light. Ming Thein’s photographic background is legible here in a way that is specific and hard to replicate.

▪ALPHA_THESIS:
The Phoenix is held as a record of MING at the height of its fifth-generation vocabulary. This is a brand that has consistently declined to expand production under demand pressure — a discipline that has defined its collector architecture since 2017. The 57.04 is not a limited event. It is a statement of what the brand has become. The archive holds it on that basis.

[ CUSTODIAN_VERDICT ]
“Extraction confirmed. The MING 57.04 Phoenix enters the vault as the definitive record of fifth-generation architecture — a destro monopusher with nine-piece stepped lugs, a multiphasic radial dial, and the authority of a brand that has spent eight years earning the right to build it this way. Limited production. No edition numbering. The object speaks for itself. Asset status: SECURED IN VAULT. Ingress: June 2026.”
